· Introduction > HL-669 is a 7 inch TFT LCD monitor.
> It use a high quality new LCD Panel, with 800X480 resolution,
300cd/m²/ 400cd/m² (Optional) high brightness and 70°/70°(L/R)
50°/70°(U/D) wide angle, which can display clear images. > It uses LED backlight, which has advantage like Energy-Saving,
Long life and environmental protection.
· Abundant Interfaces
Even small size as 7 inch, HL-669 also has HDMI, VGA, AV input,
which can support many devices like PC, DVR, Camera, DVD, HD Video
Player and so on.
>On HDMI Mode, using under scan function, it is possible to
display Full HD videos.
VESA 75mm Mount Holes
There has VESA 75 mm Mount holes (FPMPMI) on rear side of the
monitor. So it can be used with wall mount arm which support VESA
75mm. Speaker Built-in
As the built-in speaker, if there is audio output it does not need
to connect external speaker equipment. Standard Bracket
Portable Bracket. It is convenient to adjust the monitor as
360-degree horizontal and 90 degree vertical.
Image Flip Function (Optional)
HL-669 has Image Flip (Horizontally & Vertically) function. Using
this function. it is convenient to watch the display even the
monitor is reverse installation. Mode Shift between 16:9 to 4:3
Base on different signal input or Practical purposes, you can
change the display mode between 16:9 to 4:3.
Display Spec. | Model | HL-669 (HL-669 W/O Touch) | | Touch Screen | 4-Wire Resistive Touch (5-Wire for Optional) | | Touch Interface | USB (RS232 for Optional) | | Screen Size | 7" | | Resolution | 800×480 pixels | | Aspect Ratio | 16:9 | | Brightness | 300cd/m²/ 400cd/m² (Optional) | | Contrast Ratio | 500:1 | | Backlight | LED | | Viewing Angle | 70°/70°(L/R) 50°/70°(U/D) |
Input | 1 X HDMI | HDMI | | 1 X VGA | VGA | | 1 X AV | AV |
Audio
HDMI Support Format | 480i /480p /576i /576p | | 720p /1080i /1080p (50/60Hz) |
General | Input Voltage | DC12V±10% | | Power Consumption | ≤8W | | Working Temperature | -20℃～55℃ | | Storage Temperature | -30°C~65°C | | Mounting Process | Stand Bracket /VESA 75×75mm | | Unit Size | 182.7L×127.7H×29.6D (mm) | | Unit Weight | 400g |
Thank you for purchasing the liquid crystal display monitor. This
product employs new integrate circuits and high quality LCD Screen.
Advanced advantage is low power consumption, emits no radiation,
and other advantage characteristics. This product is shaped with
modern style and is easy to be carried with. The color TFT LCD is

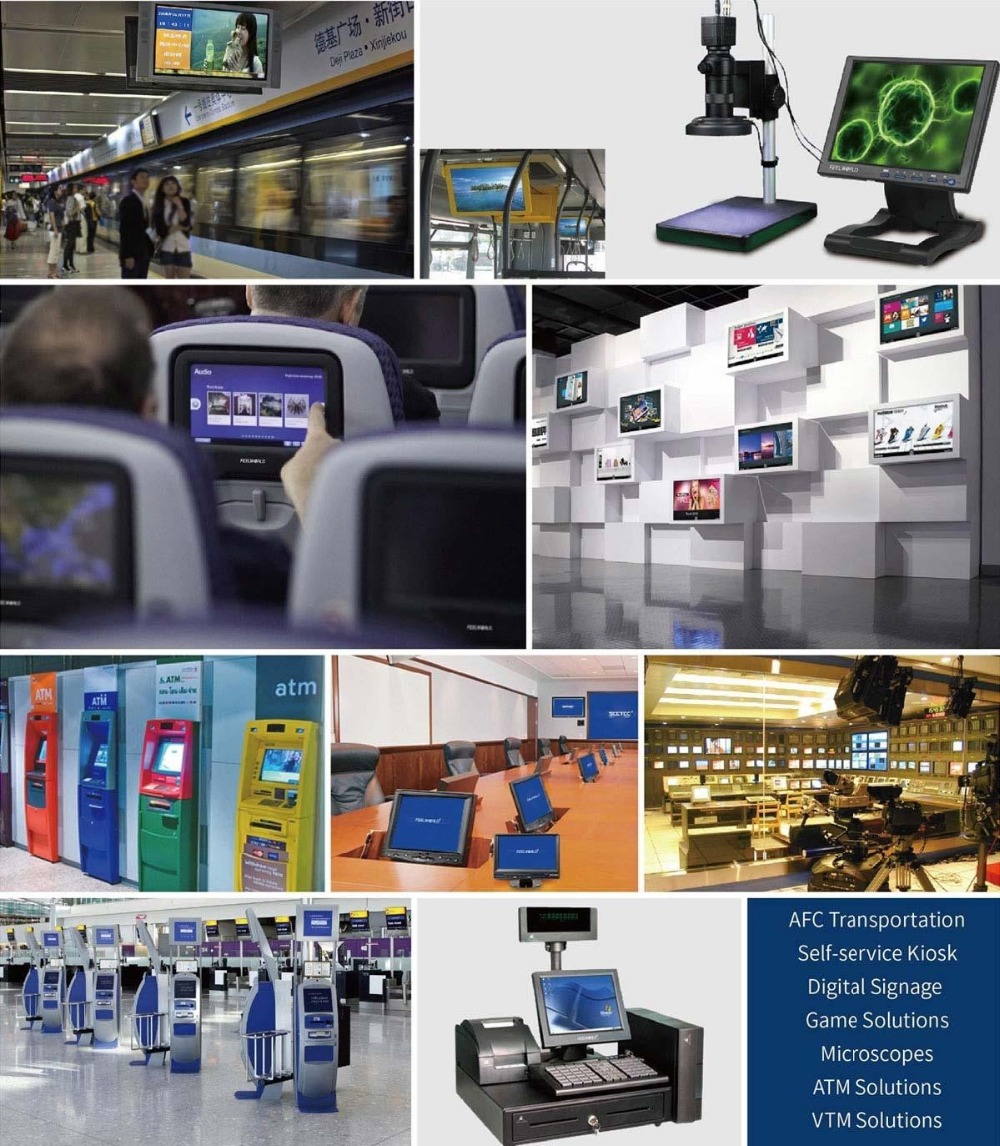

the most suitable display for VGA, VCD, DVD and GPS system for
motorcars and ships. It also can be used in the office, in flat, at
home, ATM, Automation, Gaming, Kiosk, Transportation, Military, Oil
Gas & Energy, Retail and also in other suitable position. You will
certainly benefit from this monitor in lots of ways, to some of
them: convenience, safety, space-saving.
Standard Accessories:
1× AV Cable
1× Vehicle Power Supply
1× Power Adapter
1× Bracket
1× VGA Cable
1× Remote Control
1× Touch Pen
1× Optical Disc
1× Operation Manual
|
