Introduction
> FW813AHT is a 7 inch TFT LCD monitor.
> It use a high quality new LCD Panel, with 800X600 resolution,
250cd/m² high brightness and 70°/70°(L/R) 50°/70°(U/D) wide angle,
which can display clear images.
> It uses LED backlight, which has advantage like Energy-Saving,
Long life and environmental protection.
Two Interfaces Optional

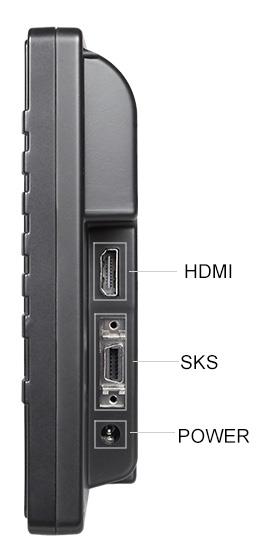

Interface (1)
Abundant Interfaces
Even small size as 8 inch,HL-813 also has HDMI, DVI-D, VGA, Audio
(1 RCA)&Video (2 RCA) inputs, which can support many devices
like PC, DVR, Camera, DVD, HD Video Player and so on.
>On HDMI Mode, using under scan function, it is possible to
display Full HD videos.
Customized SKS Cable
One Side: Customized 14 Pin SKS terminal.
The other side:
> 9 Pin VGA terminal (Black)
> 2 RCA Video terminal (Yellow)
> 1 RCA Audio terminal (White)
> 1 DC input (Black)
Interface (2)
Abundant Interfaces
Even small size as 8 inch, FW813AHT also has HDMI, VGA, AV, YPbPr
inputs, which can support many devices like PC, DVR, Camera, DVD,
HD Video Player and so on.
>On HDMI Mode, using under scan function, it is possible to
display Full HD videos.
Interface (1)
VESA 75mm Mount Holes
There has VESA 75 mm Mount holes (FPMPMI) on rear side of the
monitor. So it can be used with wall mount arm which support VESA
75mm.
Speaker Built-in
As the built-in speaker, if there is audio output it does not need
to connect external speaker equipment.
· Interface (2)
VESA 75mm Mount Holes
There has VESA 75 mm Mount holes (FPMPMI) on rear side of the
monitor. So it can be used with wall mount arm which support VESA
75mm.
Speaker Built-in
As the built-in speaker, if there is audio output it does not need
to connect external speaker equipment.

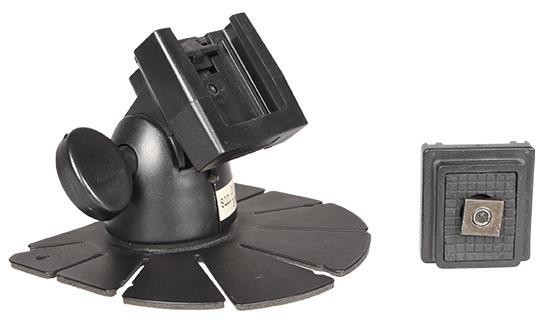

· Standard Bracket
Portable Bracket. It is convenient to adjust the monitor as
360-degree horizontal and 90 degree vertical.
Display Spec. (FW813AHT)
| Model | FW813AHT (FW813AH W/O Touch) |
| Touch Screen | 4-Wire Resistive Touch (5-Wire for Optional) |
| Touch Interface | USB (RS232 for Optional) |
| Screen Size | 8" |
| Resolution | 800×600 pixels |
| Aspect Ratio | 4:3 |
| Brightness | 250cd/m² |
| Contrast Ratio | 500:1 |
| Backlight | LED |
| Viewing Angle | 70°/70°(L/R) 50°/70°(U/D) |
Display Spec. (FW823AHT)
| Model | FW823AHT (FW823AH W/O Touch) |
| Touch Screen | 4-Wire Resistive Touch (5-Wire for Optional) |
| Touch Interface | USB (RS232 for Optional) |
| Screen Size | 8" IPS |
| Resolution | 1024×768 pixels |
| Aspect Ratio | 4:3 |
| Brightness | 350cd/m² |
| Contrast Ratio | 800:1 |
| Backlight | LED |
| Viewing Angle | 85°/85°(L/R) 85°/85°(U/D) |
Interfaces
| Interface (1): HDMI, VGA, Video, Audio (DVI Input for Optional) |
| Interface (2): HDMI, VGA, YPbPr, AV |
Audio
HDMI Support Format
| 480i /480p /576i /576p |
| 720p /1080i /1080p (50/60Hz) |
General
| Input Voltage | DC12V±10% |
| Power Consumption | ≤6W |
| Working Temperature | -20℃～55℃ |
| Storage Temperature | -30°C~65°C |
| Mounting Process | Stand Bracket /VESA 75×75mm |
| Unit Size | 216L×149H×37D mm |
| Unit Weight | 535g |
Standard Accessories:
Interface (1):
1× SKS Cable
1× Vehicle Power Supply
1× Power Adapter
1× Bracket
1× VGA Cable
1× Remote Control
1× Touch Pen
1× Optical Disc
1× Operation Manual
